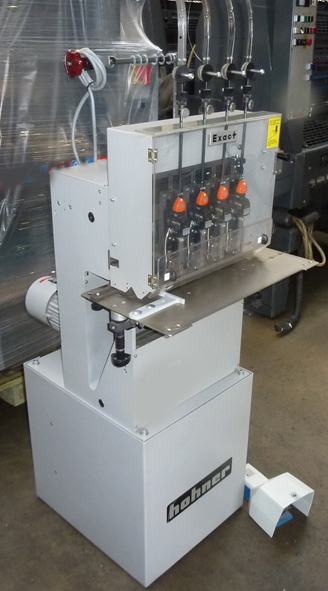

HOHNER EXACT multihead block and brochure wire stitching for normal stitching 2003
No longer available
Specifications
Manufacturer | Hohner |
Year | 2003 |
Condition | Used |
Description
Installation of up to four HOHNER narrow stitching heads UNIVERSAL 52/8 for
Normal stitching, loop stitching or mixed use.
Also ideally suited as a stand-alone machine or built-in unit .
-Maximum stapling thickness of 8 mm for normal stitching_x000 : straight for blocks, inclined for brochures .
-Staple thickness and wire length are set simultaneously and centrally for all heads
with just one lever .
-One rear and two side stops, all adjustable, ensure that the Staples are always positioned in the desired position. _X000D_
-Stapling heads can be removed or attached in no time, shifted to the side
or simply switched off temporarily .
-Maximum stapling performance:206 clips / minute per head .
-Fußauslösung
-table size: 550 x 280 mm
-insertion depth from clincher box 165 mm
-clip distance max. 330mm
-clip distance min. 52-62 mm
