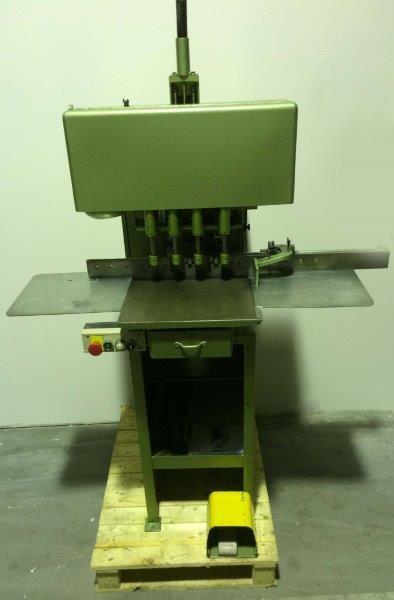

Hang 1364 fourspindle paper drilling 1995

Location

Germany

orCall +31 6 8722 7638

Specifications

ManufacturerConstantin Hang
Year1995
ConditionUsed

Description

'- 4 spindles with automatic stroke - hole spacing adjustable from 36 mm - 260 mm - drill diameter 3 - 8 mm - stack height up to max. 60 mm - drill speed 1800 ¹ / min. - spindle stroke speed 21 ¹ / min. - working depth 120 mm - continuously adjustable from 6 - 120 mm back stop with scale - table front edge up to the middle of the drill 300 mm - voltage / frequency: 400 volts, 3ph. 50 Hz.
