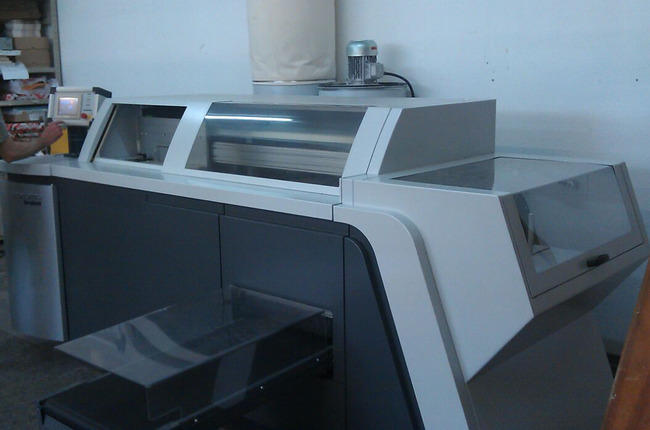

Heidelberg Eurobind EB600 single clamp perfect binder 2008
No longer available
Specifications
Manufacturer | Heidelberg |
Year | 2008 |
Condition | Used |
Description
for hotmelt glue
glue vapor extraction
flaps and creasing tools
cover double sheet control li>
Touchscreen with simple settings via icons, preheating timer, for back and side gluing, copy counter, error analysis, etc.
Pneumatically opening and closing pliers
Automatic setting of clamp opening according to block thickness, side glue disc according to block thickness, back creasing according to block thickness, crease depth
Positioning of the rear cover guide rail according to cover width
Adjustable milling depth 0-3 mm
Spine processing station with a combination tool with dust milling cutters
Height-adjustable notch knife and ring brush
Hotmelt adhesive basin with two application rollers and glue doctor and integrated side gluing unit with inclined discs (production without side glue possible) li>
Cover feeder with integrated double creasing mechanism (decorative creasing possible)
Automatic cover pressing
Belt delivery with single-compartment stacker
Speed: 600 cycles
Book block height: 120 mm - 440 mm
Book block width: 120 mm - 320 mm
Book block thickness: 2 mm - 50 mm
Grammages: 60-170 g / m2
Cover width: 242 mm - 710 mm
Cover height: 120 mm - 440 mm
Cover weight: 120 mm - 300 g / m2 li>
Milling depth: 0 -3 mm
