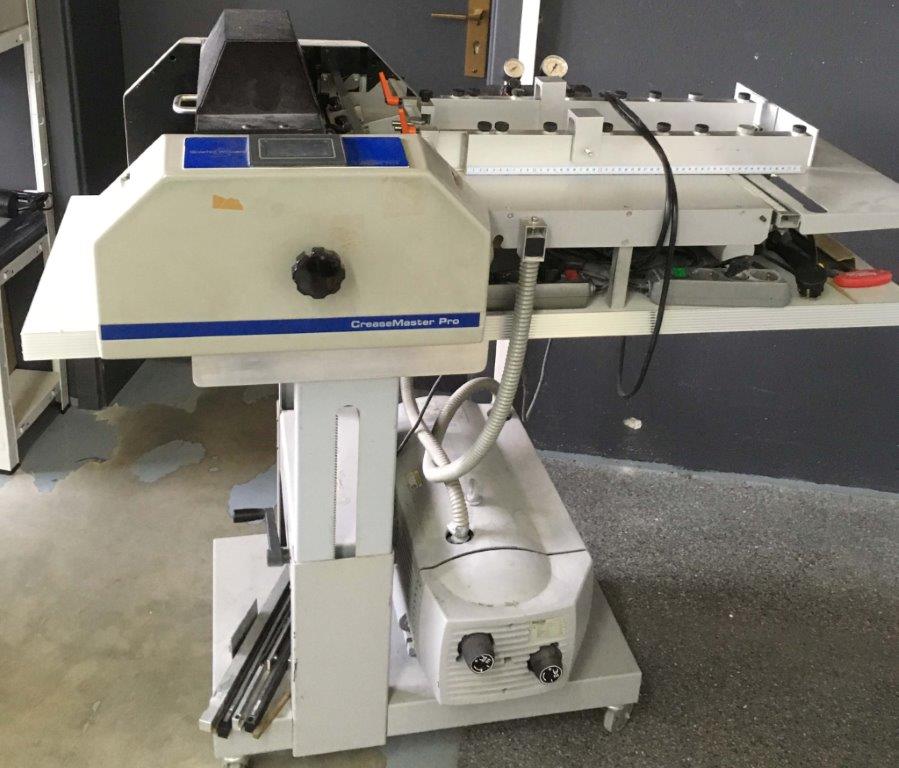

Graphic Whizard CreaseMaster Pro with suction air feeder 2008

Location

Germany

orCall +31 6 8722 7638

Specifications

ManufacturerGraphic Whizard
Year2008
ConditionUsed

Description

Creasing - Grooving - Perforating - Scoring - Cutting Creasing finished prints before folding is becoming more and more important. Especially with digital prints, prior, appropriate creasing is essential when folding, um breaking up the color and the paper at the folded edge . The CreaseMaster works according to the traditional technique with crease / groove bars, that compress the paper at the folded edge through adjustable pressure and thus prevent the paper from breaking open during folding . Lightning-fast setup via touch screen and the option of automatically applying up to 10 grooves per sheet with 2 tool bars - simultaneously from above and / or below and with a narrow or wide groove as required. The minimum distance from groove to groove is 1 mm . One of the two grooved bars can be exchanged for a bar with perforation, so that the sheets can be grooved and perforated at the same time . Recurring jobs are saved and saved in seconds retrieved. At the same time and independently of the bar creasing, additional operations can be carried out with rotating tool wheels at the paper inlet: creasing, perforating, slitting. The scope of delivery includes a pressure-vacuum pump and a tool holder with 2 Tools. Technical Data Format min. 30 x 127 mm Format max. 457 x 960 mm Performance / h max. 4,200 sheets (DIN A4 landscape) Paper weight 45 - 500 g / qm One of the two grooved bars can be exchanged for a bar with perforation so that the sheets can be creased and perforated at the same time in one operation . Recurring jobs are saved and retrieved in seconds . Simultaneously and independently of the bar creasing, can be carried out with rotating tool wheels at the paper inlet, additional work steps: creasing, perforating, slitting. The scope of delivery includes a pressure-vacuum pump and a tool holder with 2 tools. Technical data min. Format 30 x 127 mm Format max. 457 x 960 mm Performance / h max. 4,200 sheets (A4 landscape) Paper weight 45 - 500 g / sqm One of the two grooved bars can be exchanged for a bar with perforation so that the sheets can be creased and perforated at the same time in one operation . Recurring jobs are saved and retrieved in seconds . Simultaneously and independently of the bar creasing, can be carried out with rotating tool wheels at the paper inlet, additional work steps: creasing, perforating, slitting. The scope of delivery includes a pressure-vacuum pump and a tool holder with 2 tools. Technical data min. Format 30 x 127 mm Format max. 457 x 960 mm Performance / h max. 4,200 sheets (A4 landscape) Paper weight 45 - 500 g / sqmso that the sheets can be creased and perforated at the same time in one operation . Recurring orders are saved and retrieved in seconds . At the same time and independently of the bar creasing, rotating tool wheels at the paper inlet, additional operations can be carried out: creasing, Perforating, slitting. The scope of delivery includes a pressure-vacuum pump and a tool holder with 2 tools. Technical data Format min. 30 x 127 mm Format max. 457 x 960 mm max. 4,200 sheets (A4 landscape) Paper weight 45 - 500 g / sqmso that the sheets can be creased and perforated at the same time in one operation . Recurring orders are saved and retrieved in seconds . At the same time and independently of the bar creasing, rotating tool wheels at the paper inlet, additional operations can be carried out: creasing, Perforating, slitting. The scope of delivery includes a pressure-vacuum pump and a tool holder with 2 tools. Technical data Format min. 30 x 127 mm Format max. 457 x 960 mm max. 4,200 sheets (A4 landscape) Paper weight 45 - 500 g / sqm At the same time and independently of the bar creasing, rotating tool wheels at the paper inlet, additional operations can be carried out: creasing, perforating, slitting. The scope of delivery includes a pressure-vacuum pump and a tool holder with 2 tools. Technical Data Format min. 30 x 127 mm Format max. 457 x 960 mm Performance / h max. 4,200 sheets (DIN A4 landscape) Paper weight 45 - 500 g / sqm At the same time and independently of the bar creasing, rotating tool wheels at the paper inlet, additional operations can be carried out: creasing, perforating, slitting. The scope of delivery includes a pressure-vacuum pump and a tool holder with 2 tools. Technical Data Format min. 30 x 127 mm Format max. 457 x 960 mm Performance / h max. 4,200 sheets (DIN A4 landscape) Paper weight 45 - 500 g / sqm457 x 960 mm Performance / h max. 4,200 sheets (A4 landscape) Paper weight 45 - 500 g / sqm457 x 960 mm Performance / h max. 4,200 sheets (A4 landscape) Paper weight 45 - 500 g / sqm
