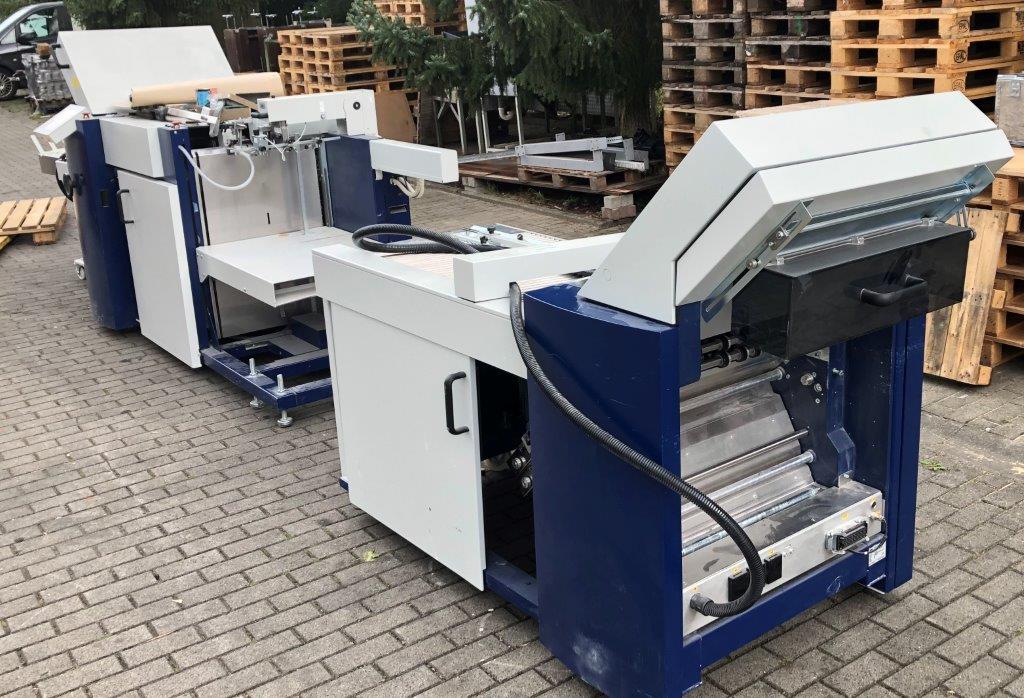

Mathias Bäuerle Prestige FoldNet 5244FSAAM 52 pocket folding 2013
No longer available
Specifications
Manufacturer | Mathias Baeuerle |
Year | 2013 |
Condition | Used |
Description
fully automatic adjustable
1. Folding unit with 4 pockets and downstream knife shaft, transfer table,
with 42.9 million folds
2. Folding unit with 4 pockets and downstream knife shaft
ca. 15 million folds
The automatic set-up controls the setting of the machine from the feeder to the delivery .
Based on the specified sheet format, the selected fold type and the paper thickness measured by a paper thickness sensor, the computer control
calculates the position of the various adjusting elements and takes over their settings.
Intelligent machine control and touchscreen operation make folding easy .
The central touchscreen panel is the interactive operator interface.
From here, all important settings are made.
* feeder
* all folding pockets
* sheet diverters
* rulers
* rollers
* Auslagen
* 20 types of folds permanently saved
* other types of folds freely programmable
* other types of folds_x000_document * CIP4-compatible
* folding units with 4 or 6 pockets
* expandable up to 3 pocket folding units
* can be combined with mobile knife folding unit
max. Sheet format 52 x 85 cm
min. Sheet format 10 x 12 cm
min. Fold length 3.5 cm
Stacking height of the feeder 66 cm
Speed max. 220 m / min
mobile height-adjustable long shingle delivery
