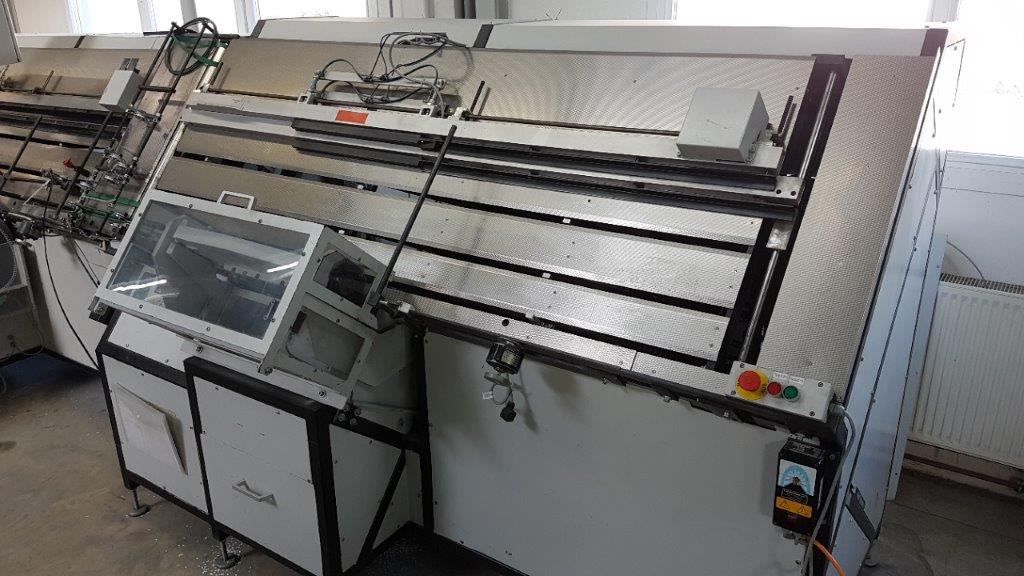

Renz Inline 500 fully automatic highperformance punching and binding system

Location

Germany

orCall +31 6 8722 7638

Specifications

ManufacturerRenz
ConditionUsed

Description

consists of the ASM 500 punching module and the ABL 500, an automatic binding machine. for wire comb binding from the endless reel, for block, calendar and skip binding. Binding width 70 mm to 500 mm Diameter range of the wire comb binding elements from 1/4 "(5.5 mm) to 1" (25.4 mm) ._ x000D_ The unpunched binding material is manually inserted into the punching station, punched there, automatically fed to the binding element, collected and closed in the binding device . The KAS 300 IL calendar hanger tool is used when processing calendars . Straight wire shafts are separated from a magazine, bent into a calendar hanger and automatically fed to the open binding element before the closing process. The fully automatic spool unwinding with integrated separating strip winding is also used to compress and thus reduce the amount of waste . The scope of delivery includes: Closing jaws 1/4 ", 5/16" and 3/8 "this covers all common calendars and brochures up to approx. 8mm thickness Cover page turner 1 punching tool 3: 1 4x4mm with thumb hole left> 8mm thick covered Cover page turner 1 punching tool 3: 1 4x4mm with thumb hole 8mm thick covered Cover page turner 1 punching tool 3: 1 4x4mm with thumb hole
