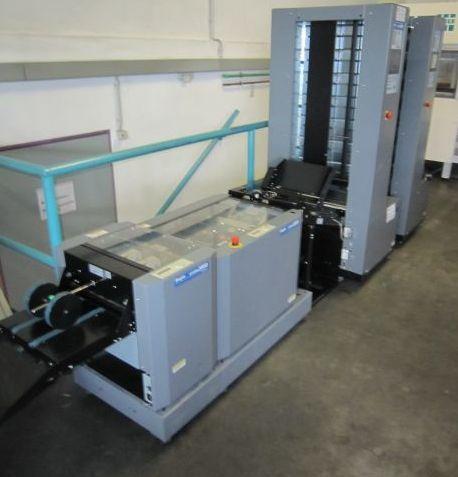

FKS Duplo System 2000 brochure production 2008



orCall +31 6 8722 7638


ManufacturerFKS Duplo


2 Duplo collating towers COLLATOR DC-8 / 32 Stations: 2 x 8 Infeed system: Vacuum belt with suction air Paper transport: double belts and rollers Stacking height: 60 mm Papierformat Pap x 500 mm Speed: up to 10,000 sets / hour Paper weights: approx. 40 - 300 g / m Functions & amp; Programs: - Auto calibration, right or left delivery, automatic station selection, block mode, - separator sheet function, reject tray (right & amp; left), dynamic manual feed station - detection: double sheet (with adjustable sensitivity), Missing sheet, paper jam, jam on the transport, station empty Dimensions (WxDxH): 630 x 750 x 1702 mm Connected values: 230V / 50Hz Weight: approx. 260 kg per tower Duplo LIFTING UNIT LUL / HM Duplo stapling / folding unit STAPLER FOLDER DBM-120 Digital-dynamic conversion of the format, the stapling heads, the_x000 formats freely programmable_x000_x000 Paper formats for saddle stitching and fold / center fold: min. 200 x 200 mm, max. 320 x 450 mm Paper formats for block stitching (cross-feed direction): min. 139 x 200 mm, max. 231 x 320 mm Speed: up to 2,400 brochures / hour Processing strength: up to approx. 25 sheets (80 g / m²) Operations: Brochure production, folding without stapling, block stitching across, corner stitching across Controls: Stop when the staple magazine is empty, paper jam control Stitching heads:
