Ernst Nagel AutoRillnak Pro 33 2014
No longer available
Specifications
Manufacturer | Morgana / Ernst Nagel |
Year | 2014 |
Condition | Used |
Description

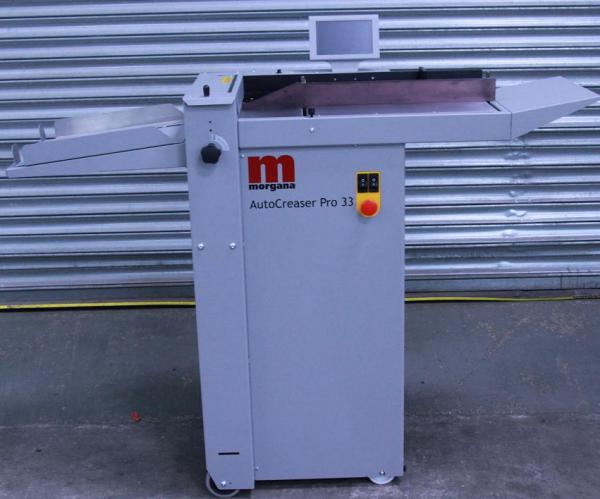

Morgana AutoCreaser Pro 33 / Ernst Nagel Auto-Rillnak Pro 33
Built in 2014 - as good as new
Equipped with the new practical touchscreen display, which is easy to use, processes paper formats with 35 cm infeed width and up to 100 cm in length
unter Use of the proven technology of creasing bars against creasing groove. The material is gently compacted during the creasing process, which prevents the printing ink from flaking or tearing the material
during folding. The paper is fed by a blower and suction air system, which prevents the sensitive material from being scratched. Quick and easy operation via joystick and clear display .
Application:
sensitive digital prints, matt-coated papers, cardboard, Material with wrong running direction,
varnished printed matter, laminated material, brochure covers and much more
Perforating and slitting along the running direction is possible with additional rotary tools. (Option)
Accessories optional: Perforating knife 96/56/28/20 Zaehne
The main functions of the machine are controlled via the touchscreen control panel. You only have to enter the paper length for the finished product (standard paper dimensions are preset). All other settings and information are adopted by the software. Information about the fold gaps is displayed digitally on the touchscreen. Another advantage is the language independence of the software - only symbols are used, which makes language settings superfluous. In addition, the operation of the touchscreen is very easy to learn. The extensive alphanumeric memory allows you to save an unlimited number of jobs under your own name .
Working width 35 cm
Working length 100 cm
recommended paper weight 70 - 350 g / m²
Programme memory 9 max - with manual feed 1,000 x 330 mm
Paper format max. - with autom. Feed 700 x 330 mm
Paper format min. 140 x 210 mm
Speed up to 6,500 (sheets / hour)
Min. Crease spacing 4 mm
Min. Creasing distance from leading edge of sheet 25 mm
Min. Creasing distance from the rear edge of the sheet 20 mm The extensive alphanumeric memory allows you to save an unlimited number of jobs under your own name .
Working width 35 cm
Working length 100 cm
recommended paper weight 70 - 350 g / m²
Programme memory 9 max - with manual feed 1,000 x 330 mm
Paper format max. - with autom. Feed 700 x 330 mm
Paper format min. 140 x 210 mm
Speed up to 6,500 (sheets / hour)
Min. Crease spacing 4 mm
Min. Creasing distance from leading edge of sheet 25 mm
Min. Creasing distance from the rear edge of the sheet 20 mm The extensive alphanumeric memory allows you to save an unlimited number of jobs under your own name .
Working width 35 cm
Working length 100 cm
recommended paper weight 70 - 350 g / m²
Programme memory 9 max - with manual feed 1,000 x 330 mm
Paper format max. - with autom. Feed 700 x 330 mm
Paper format min. 140 x 210 mm
Speed up to 6,500 (sheets / hour)
Min. Crease spacing 4 mm
Min. Creasing distance from leading edge of sheet 25 mm
Min. Creasing distance from the rear edge of the sheet 20 mm - with manual feed 1,000 x 330 mm
Paper format max. - with autom. Feed 700 x 330 mm
Paper format min. 140 x 210 mm
Speed up to 6,500 (sheets / hour)
Min. Crease spacing 4 mm
Min. Creasing distance from leading edge of sheet 25 mm
Min. Creasing distance from the rear edge of the sheet 20 mm - with manual feed 1,000 x 330 mm
Paper format max. - with autom. Feed 700 x 330 mm
Paper format min. 140 x 210 mm
Speed up to 6,500 (sheets / hour)
Min. Crease spacing 4 mm
Min. Creasing distance from leading edge of sheet 25 mm
Min. Creasing distance from the rear edge of the sheet 20 mm
