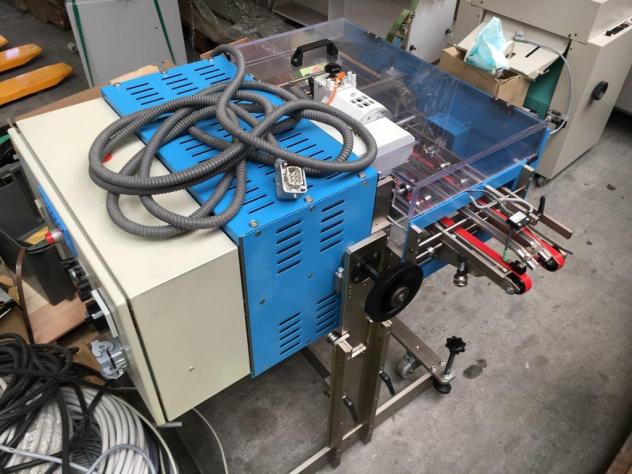

GUK ZK 500 4P digital parallel fold knife folder 2006
No longer available
Specifications
Manufacturer | GUK Grieser & amp; Kunzmann |
Year | 2006 |
Condition | Used |
Description
electronically controlled single folder with the latest technology for parallel fold
for attachment to GUK folding machines as well as third-party machines such as saddle stitchers, gathering machines etc.
ul>
Technischeätze
Rotatable folding unit, for German and international quadruples
Completely noiseless drive without gears via V-belts and flat belts
Wear-free, electronically controlled speed control with tachometer generator
Automatic cycle setting via a reflex light barrier through the incoming sheet
Central roller adjustment with micro setting
Height adjustable,mobile, lockable
Electrics can be switched from automatic to separate operation for third-party machines
Solid construction, maintenance-free, designed for continuous operation
Infeed width: max. 30 cm min. 11 cm
Format length: max. 65 cm min. 16 cm
Infeed height: (sword from above) max. 860 mm and min. 520 mm
Outlet height: (sword from above) max. 770 mm and min. 430 mm
Inlet height: (sword from below) max . 865 mm and min. 525 mm
Outlet height: (sword from below) max. 970 mm and min. 630 mm
Speed: 40 - 130 m / Minute, infinitely variable via electronic speed control
Number of cycles: up to approx. 16,000 cycles / hour
Power requirement: 1.0 kW
Space requirement: 0.80 x 1.30 m li>
