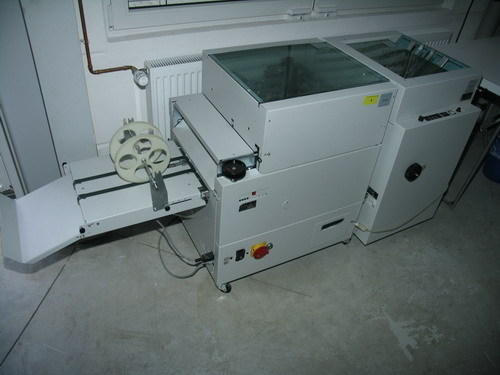

Ernst Nagel Foldnak 8 Brochure Stitching System 2008

Location

Germany

orCall +31 6 8722 7638

Specifications

ManufacturerErnst Nagel
Year2008
ConditionUsed

Description

Brochure volume up to 100 pages (80 g / m² paper) Paper formats DIN A5, A4, A3, A3 +, SRA3 (and any intermediate format) li> Brochure formats DIN A4, A5, A6 (and any intermediate format) Cover cardboard up to approx. 300 g / m² 2 Stapling heads 2 with magazine control No adjustment to paper thickness required Stapling head positions in mm 30 x 50 x 80 x 50 x 30 Clamp bender clincher (movable bender) Clamp types ring clips Ri 26/6 Staples 26/6, 26/8, 26 / 8S Production output of up to 2,000 brochures / hour Electric stream delivery, stroke adjustable Block stitching on-line, up to 40 sheets Frontschneider The press-off station in front of the trimming ensures that brochures lie flat Sharp fold, overhead conveyor belts ensure safe paper transport even of thick booklets, adjustable belt tracking always ensures that the stop is precisely positioned, even with booklets that come in at an angle, format change in 30 sec. Booklet size up to 100 Pages (80 g / m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production capacity up to 2,000 brochures / hour Connection 230 V, 50 Hz, 600 W Electric stream delivery, stroke adjustable Block stapling on-line, up to 40 sheets Frontschneider The pressing station in front of the trimming ensures flat brochures with a sharp fold , overhead conveyor belts ensure safe paper transport even of thick booklets, adjustable belt tracking always ensures precise contact with the stop, even with booklets that come in at an angle, format change in 30 sec. Booklet size up to 100 pages ( 80 g / m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production capacity up to 2,000 brochures / hour li> Connection 230 V, 50 Hz, 600 W Electric stream delivery, stroke adjustable Block stapling on-line, up to 40 sheets Frontschneider The pressing station in front of the trimming ensures flat brochures with a sharp fold , overhead conveyor belts ensure safe paper transport even of thick booklets, adjustable belt tracking always ensures precise contact with the stop, even with booklets that come in at an angle, format change in 30 sec. Booklet size up to 100 pages ( 80 g / m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production capacity up to 2,000 brochures / hour li> Connection 230 V, 50 Hz, 600 W Stroke adjustable Block stitching on-line, up to 40 sheets Frontschneider The pressing station in front of the trimming ensures flat brochures with a sharp fold, overhead conveyor belts ensure safe paper transport even of thick booklets, adjustable tape tracking always ensures that the stop is positioned precisely, even with staples arriving at an angle, format change in 30 sec. m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production capacity up to 2,000 brochures / hour Connection 230 V, 50 Hz, 600 W Stroke adjustable Block stitching on-line, up to 40 sheets Frontschneider The pressing station in front of the trimming ensures flat brochures with a sharp fold, overhead conveyor belts ensure safe paper transport even of thick booklets, adjustable tape tracking always ensures that the stop is positioned precisely, even with staples arriving at an angle, format change in 30 sec. m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production capacity up to 2,000 brochures / hour Connection 230 V, 50 Hz, 600 W Block stitching on-line, up to 40 sheets Frontschneider The pressing station in front of the trimming ensures flat brochures with a sharp fold, overhead conveyor belts ensure safe paper transport even from thick booklets, adjustable tape tracking causes always a precise concern at the stop, even with diagonally incoming booklets, format change in 30 sec. Brochure volume up to 100 pages (80 g / m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production capacity up to 2,000 brochures / hour Connection 230 V, 50 Hz, 600 W Block stitching on-line, up to 40 sheets Frontschneider The pressing station in front of the trimming ensures flat brochures with a sharp fold, overhead conveyor belts ensure safe paper transport even from thick booklets, adjustable tape tracking causes always a precise concern at the stop, even with diagonally incoming booklets, format change in 30 sec. Brochure volume up to 100 pages (80 g / m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production capacity up to 2,000 brochures / hour Connection 230 V, 50 Hz, 600 W Frontschneider The pressing station in front of the trimming ensures that brochures lie flat with a sharp fold, overhead conveyor belts ensure safe paper transport even for thick booklets, adjustable tape tracking ensures that the stop is always precise, even with booklets that come in at an angle, format changes in 30 sec. Brochure volume up to 100 pages (80 g / m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm li> Production output of up to 2,000 brochures / hour Connection 230 V, 50 Hz, 600 W Frontschneider The pressing station in front of the trimming ensures that brochures lie flat with a sharp fold, overhead conveyor belts ensure safe paper transport even for thick booklets, adjustable tape tracking ensures that the stop is always precise, even with booklets that come in at an angle, format changes in 30 sec. Brochure volume up to 100 pages (80 g / m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm li> Production output of up to 2,000 brochures / hour Connection 230 V, 50 Hz, 600 W Overhead conveyor belts ensure that the paper is transported safely, even with thick booklets, adjustable belt tracking always ensures that the stop is precisely positioned, even when the booklet is at an angle, format change in 30 seconds g / m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production capacity up to 2,000 brochures / hour li> Connection 230 V, 50 Hz, 600 W Overhead conveyor belts ensure that the paper is transported safely, even with thick booklets, adjustable belt tracking always ensures that the stop is precisely positioned, even when the booklet is at an angle, format change in 30 seconds g / m² paper) Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production capacity up to 2,000 brochures / hour li> Connection 230 V, 50 Hz, 600 W Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production output up to 2,000 brochures / hour Connection 230 V, 50 Hz, 600 W Brochure formats A4, A5, A6 (and any intermediate format), min 10 cm Production output up to 2,000 brochures / hour Connection 230 V, 50 Hz, 600 W
