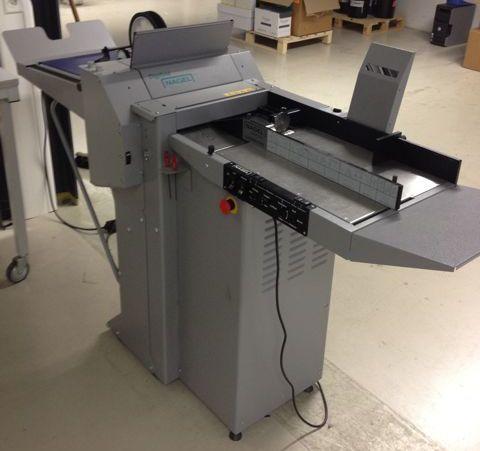

Ernst Nagel Digifold creasing and folding 2007

Location

Germany

orCall +31 6 8722 7638

Specifications

ManufacturerErnst Nagel Morgana
Year2007
ConditionUsed

Description

No more fold breaks with automatic folding! The Nagel Digifold combines the proven creasing technology of the Nagel Auto-Rillnak with a convincing folding system. The risk of marking or scratching sensitive materials during further processing is reduced and a perfectly sharp and undamaged fold is created. By combining creases and folds in one unit, a highly productive and user-friendly, mobile finishing center is created. The suction feeder pulls the paper off from below . max. Format 630 x 330mm min. Format 210 x 140mm Speed ​​max. 1,500 sheets / hour Preset counter Total counter Perforate Paper weight max. (g / m2) 400 Paper weight min. (g / m2) 100 Max. Number of grooves / sheet 9 Max. Number of fold breaks / sheet 2 Max. Number of program memory locations 9 Min. Distance between two grooves (mm) 40 Min. Distance between two fold breaks (mm) 70 Min. Crease distance from leading edge of sheet (mm) 50 Min. Fold distance from leading edge of sheet (mm) 50 Min. Crease distance from rear edge of sheet (mm) 50 Min. Fold distance from rear edge of sheet (mm) 50 Min. Seam length (mm) 70
