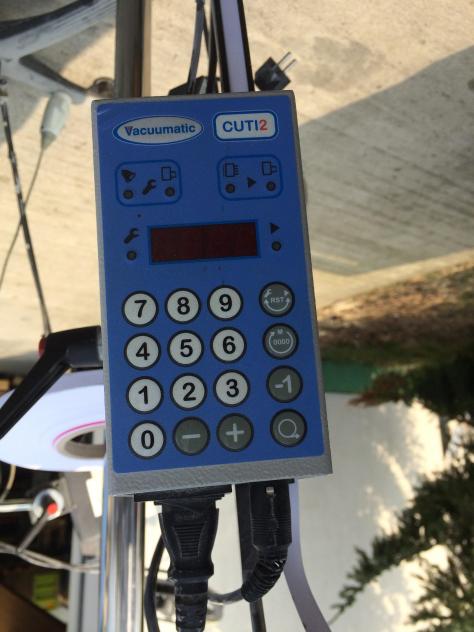

Vacuumatic Cuti 2 strip inserter 2014
No longer available
Specifications
Manufacturer | Vacuumatic |
Year | 2014 |
Condition | Used |
Description
Strip bullet device, optionally with laser sensor - no mechanical or electrical connection to the printing machine
compact, versatile and inexpensive solution for counting and dividing in one operation
Specially developed for use on smaller printing machines with low stack heights
Counting speed: up to 15,000 sheets / h
Working height up to 1500 mm li>
Strip bullet: 6 to 9999 sheets
Trimming delay: 5 sheets (not variable)
Strip length: from at least 100 mm to max. 200 mm adjustable
Pulse generator: interface adapter, optically decoupled
Strip roll: 13 mm wide, length approx. 150 m, Kraft paper 150 g / m²
Display of total quantity, package quantity, bullet, signal when the number of pieces is reached
Roll holder: Ø 235 mm, adjustable to 45 °, 90 ° and 135 °
Connection: 230 V / 50 / 60Hz
Dimensions: 142 x 141 x 75 mm (without channel, roll holder and stand)
Stand space requirement: 610 x 610 mm
230 V / 50 / 60Hz
Dimensions: 142 x 141 x 75 mm (without channel, roll holder and stand)
Space requirement stand: 610 x 610 mm
230 V / 50 / 60Hz
Dimensions: 142 x 141 x 75 mm (without channel, roll holder and stand)
Space requirement stand: 610 x 610 mm
